Black Market Parts (BMP) S55 Port Injection

SKU 601-0016
Original price $549.99 - Original price $999.99
Original price
$749.99
$549.99 - $999.99
Current price $749.99

The Black Market Parts Multi-port Injection (MPI) kit with flex fuel capability is a necessity to safely and sufficiently support the power levels of upgraded turbos. This kit is capable of providing supplemental fueling to all BMW’s equipped with S55 engine.

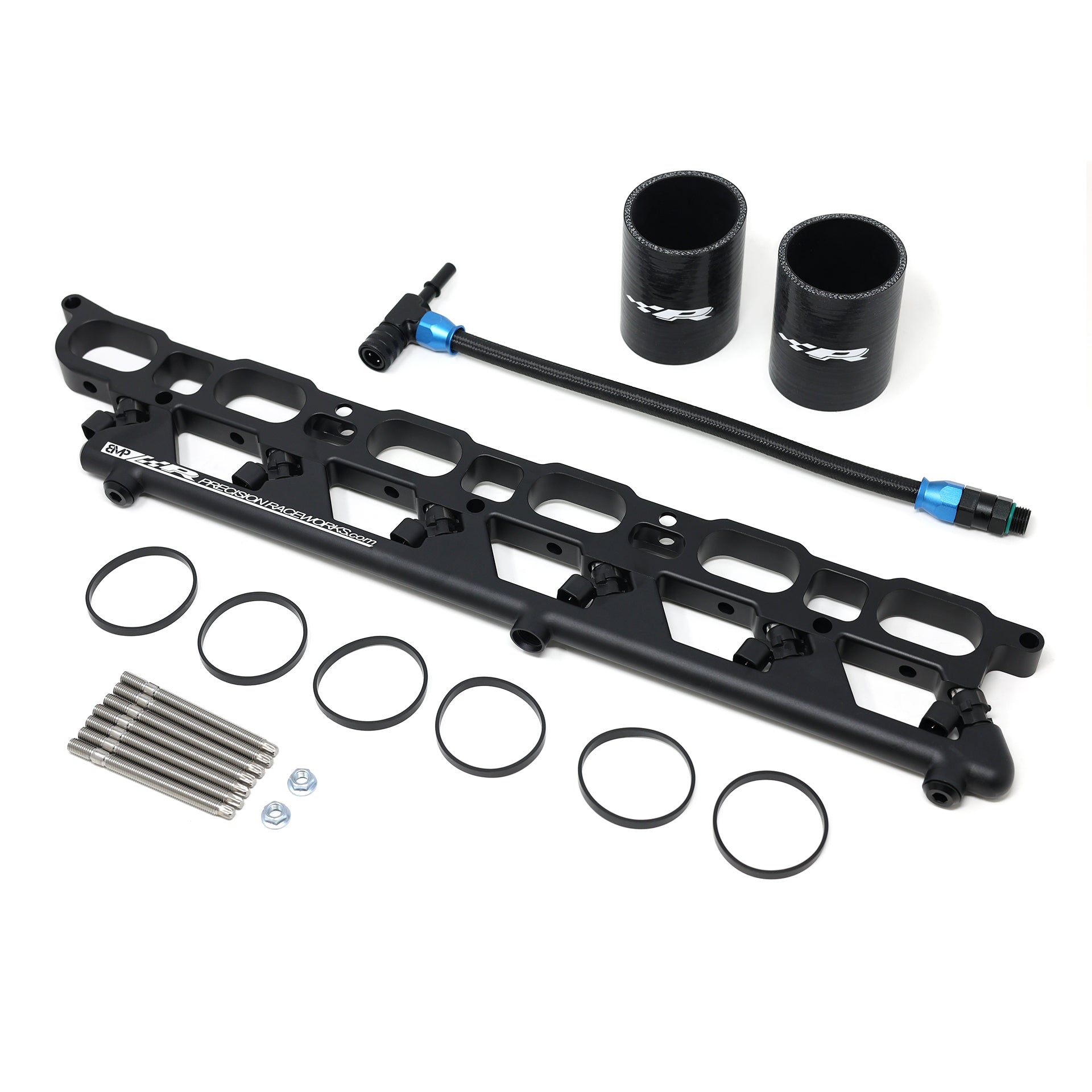

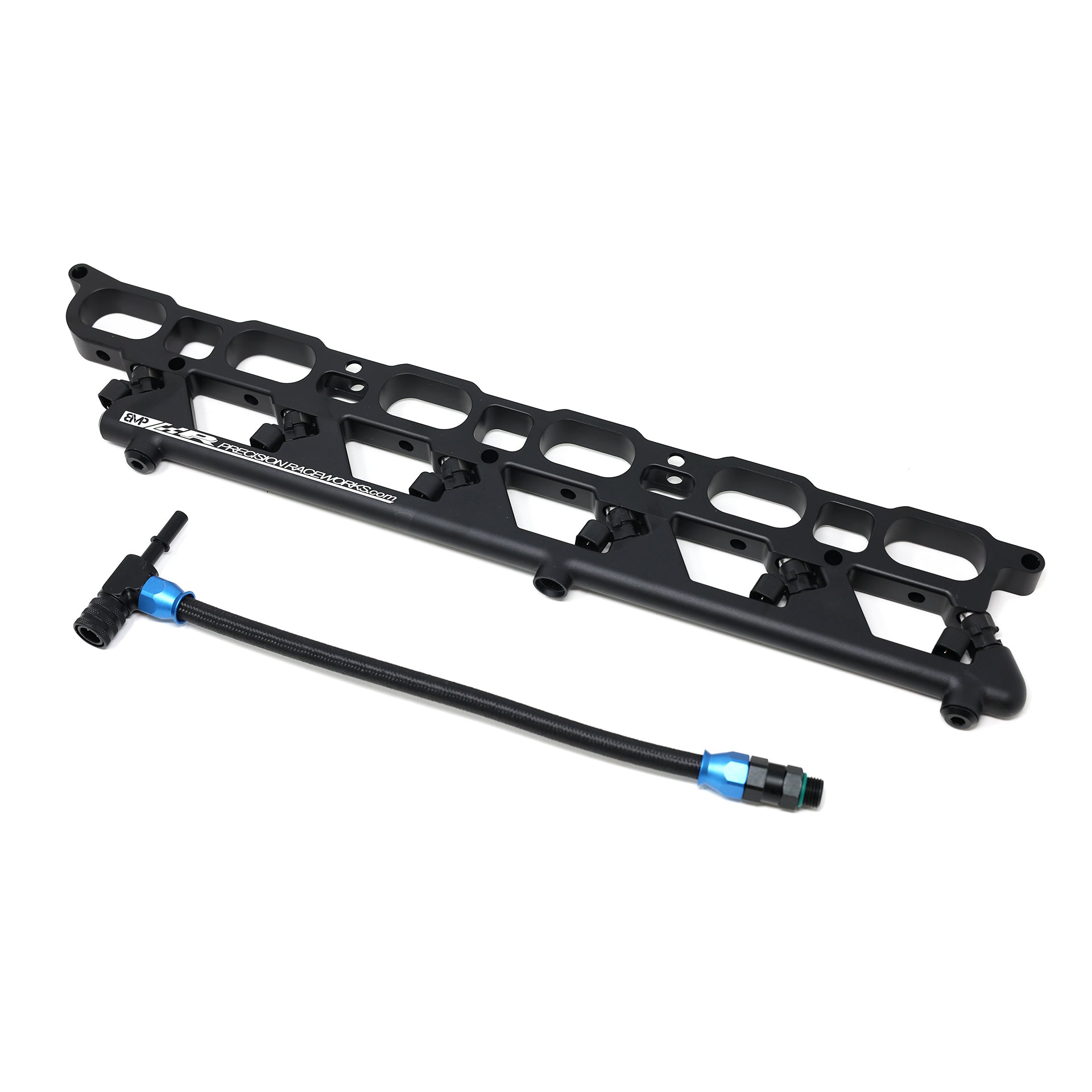

The complete kit integrates seamlessly into your car like it left from the factory with it installed; you can’t even see the kit once the car is assembled! This kit includes everything needed to add multi-port injection and is 100% e85 compliant. We include new genuine Bosch Motorsport injectors which are flow matched both static and dynamic. A Detailed certificate of conformance is included with each kit giving you all flow data needed for optimal tuning.

Don’t be tricked into thinking all port injection kits are equal, the BMP kit is the industry leader. The kit features 750cc* or 950cc* injectors standard (this flow rate is based on industry injector flow test pressure of 43.5psi) at 72psi the 750cc injectors flow 1000cc. What this means is our kit is capable of supporting builds from 400whp up to 1,000whp out of the box and if you need even more, we offer the even larger flow rate 950cc!

Simply pick up this kit and pair it with your favorite injector controller!  We have several to choose from:

AIC-1 - The basic injector controller used for years.  This controller is easy to tune, and utilizes batch firing (all injectors fire at the same time)

ReFlex Lite - Simple controller that is similar to the AIC in price, but gives you Seqential fire of your injectors.  This improves fuel trims, fuel pressures are more stable, and each injector will output more fuel each time it fires.

ReFlex Plus - Advanced controller featuring CanBus integration, ability to add an ethanol sensor and integrate a true flex fuel tune, ability to add a fuel pressure sensor, and additional capabilites.


For more product details see the specifications tab

(Use of supplemental pump controller is required)



*Actual flow rate may vary, as advertised flow rate is common average.

Specifications

Weight:

Engine Compatibility: All S55 engines

Injector brand: Genuine Bosch Motorsports

Advertised Flow 950cc: 750cc @ 43.5psi , 1050cc @ 72.5psi

Advertised Flow 950cc: 950cc @ 43.5psi , 1226cc @ 72.5psi

Fuel Compatibility: All known fuels

Flow Matched: 2% or better (250% more accurate than off the shelf injectors)

Connection Type: EV6 (Called US Car Connector) works with AIC and JB4 Controller

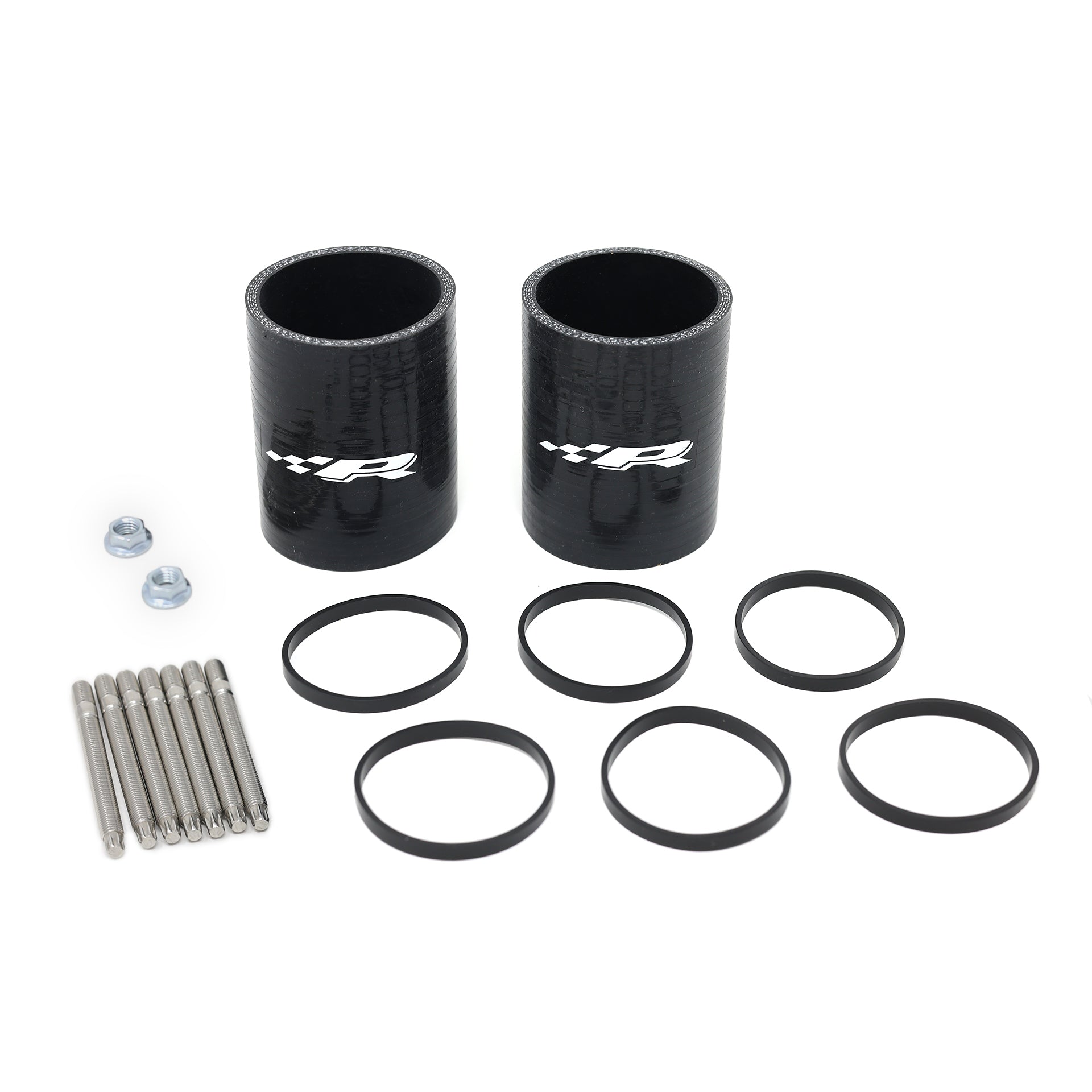

Hardware included: Yes stainless OEM style studs

Gasket Type: OEM Spec manifold gaskets used in port injection plate (included)

Fuel Distribution Pattern: Diagonal equal distribution across all cylinders
