Bosch Motorsport Extended Tip Matched Injectors

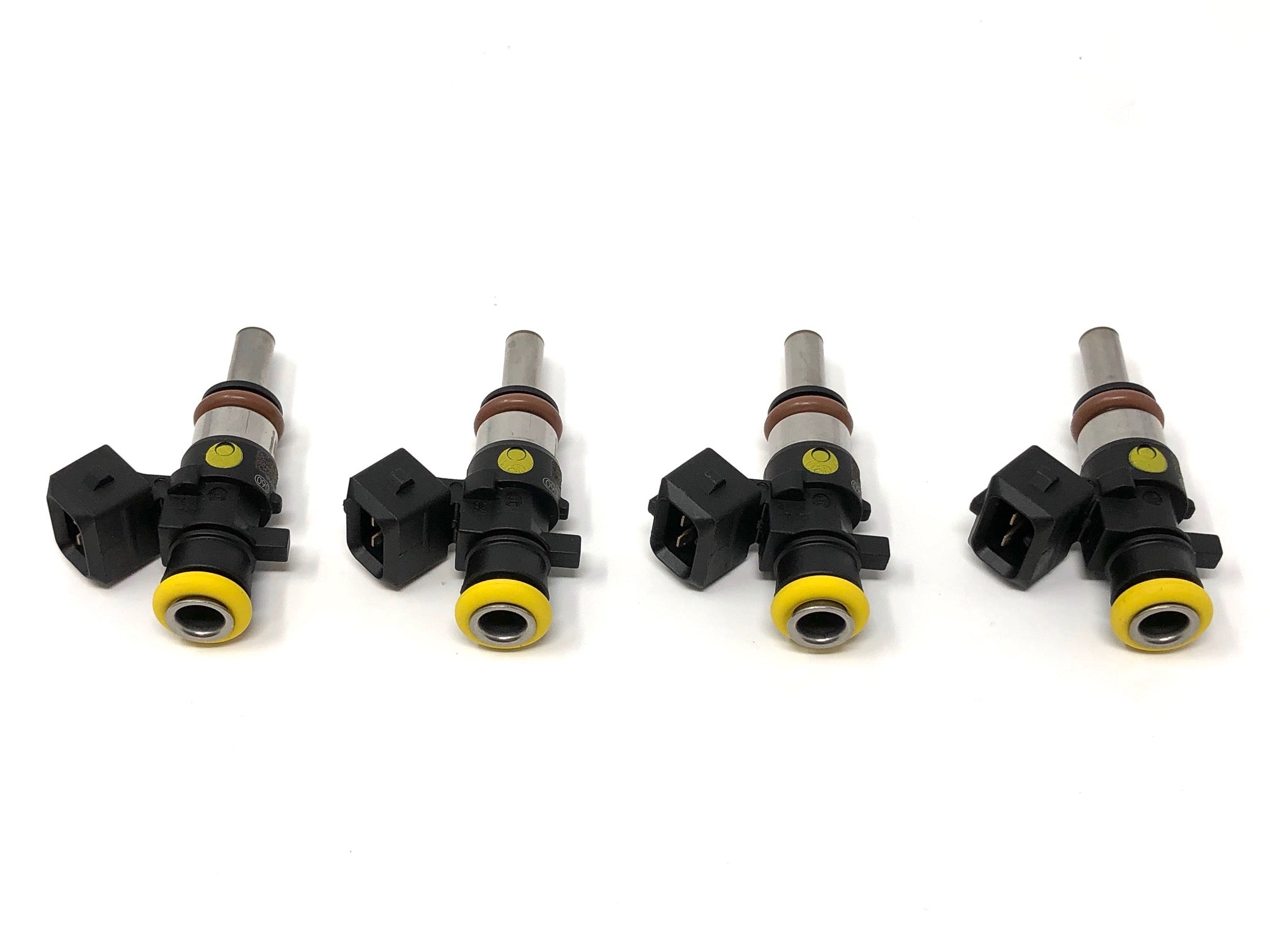

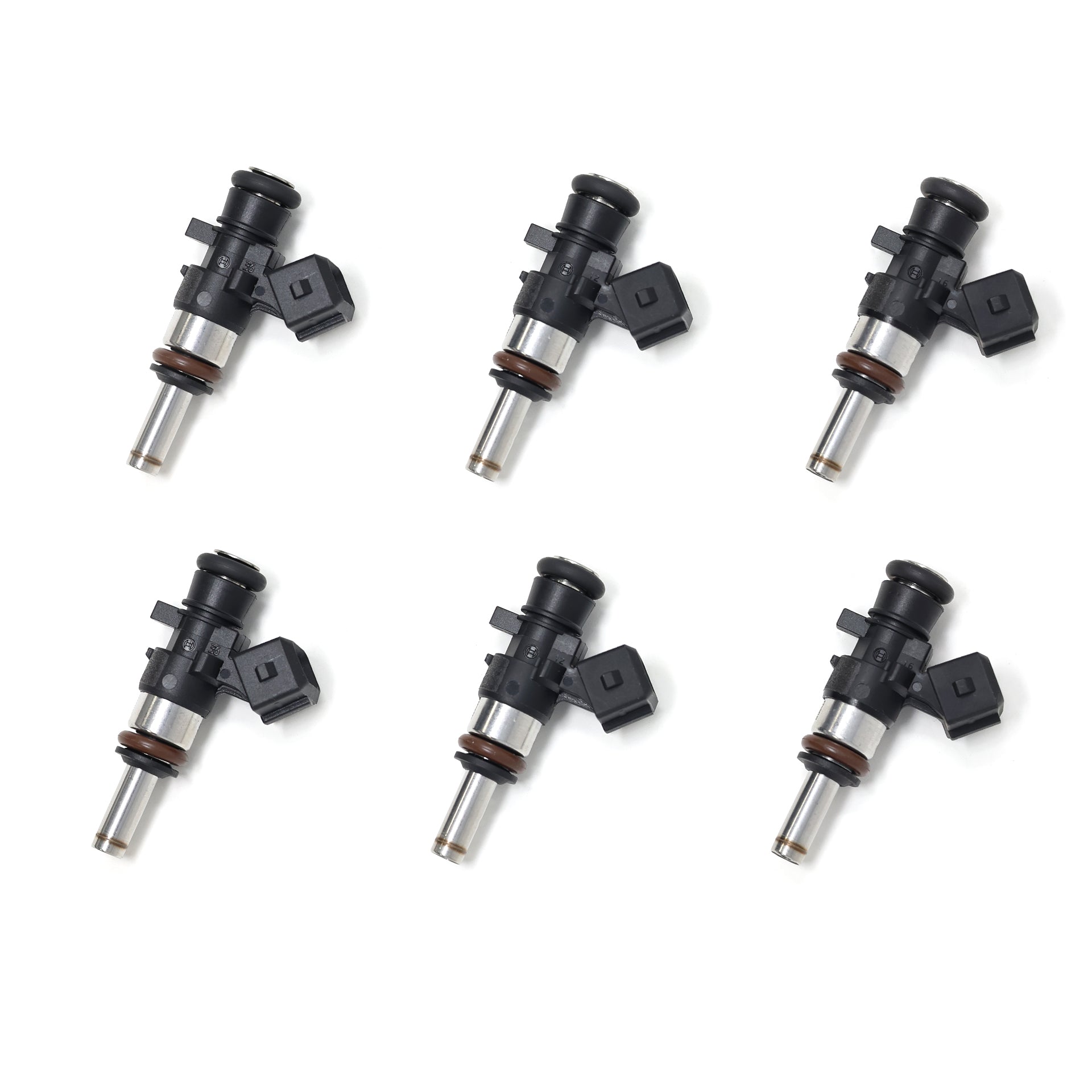

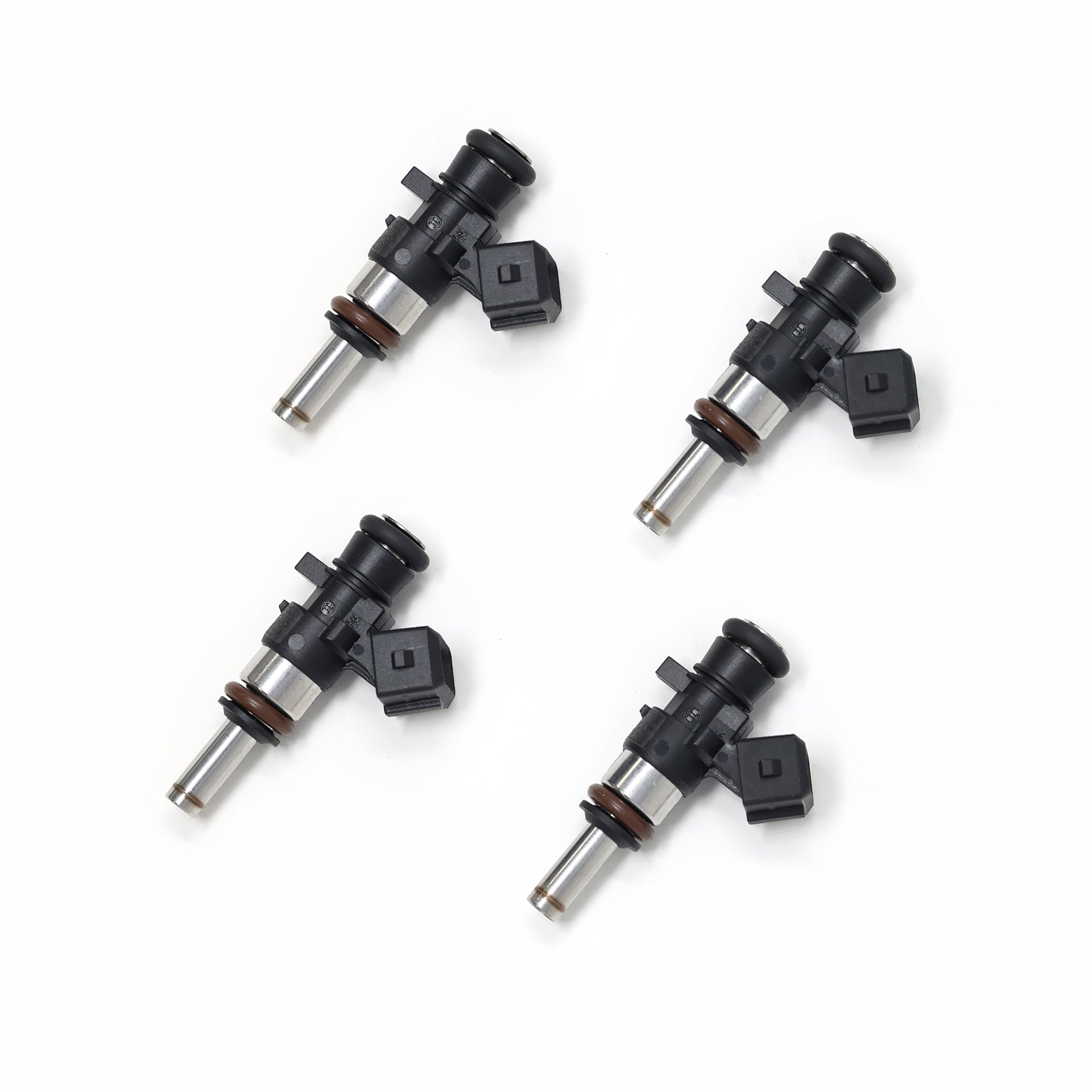

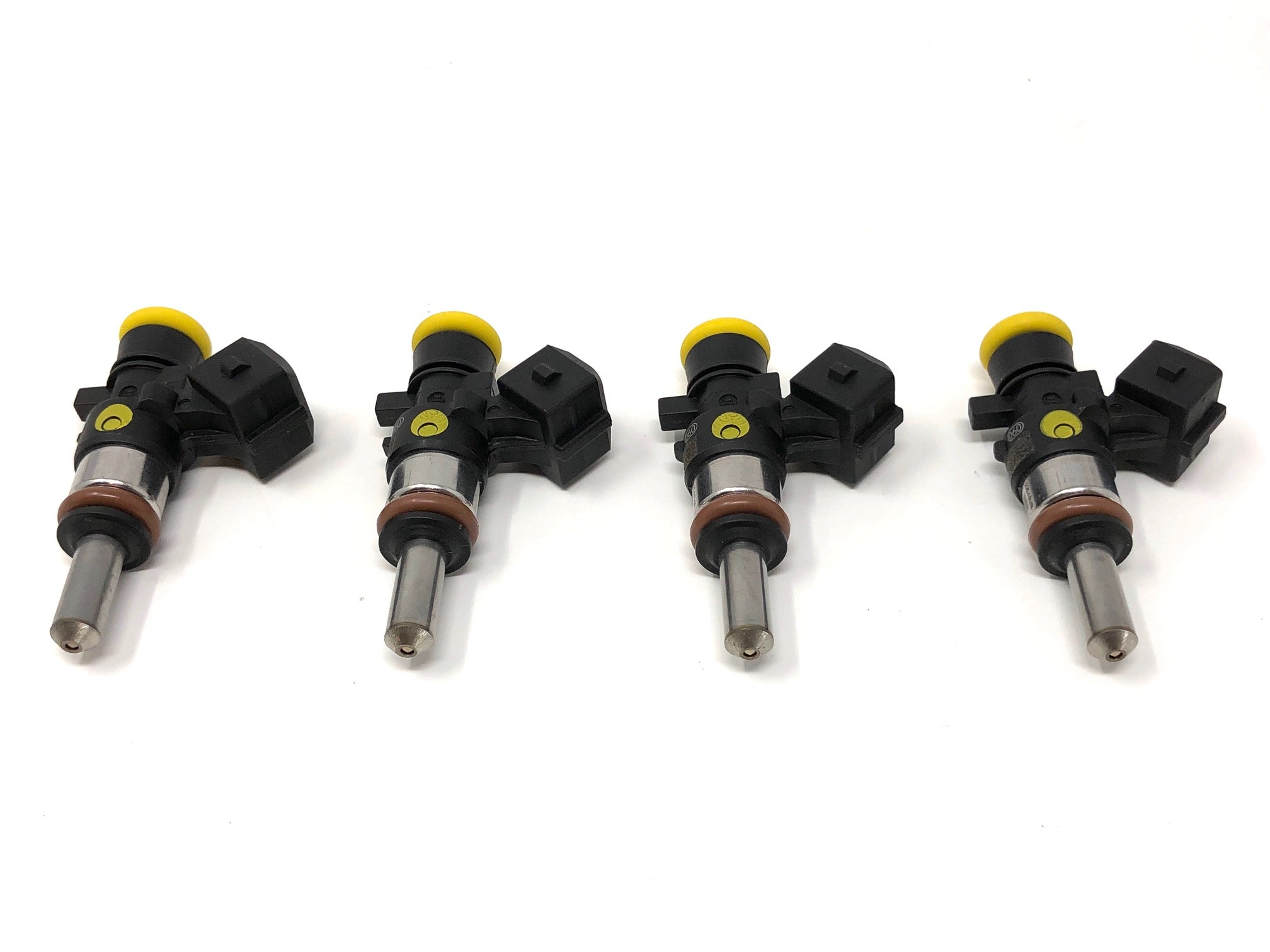

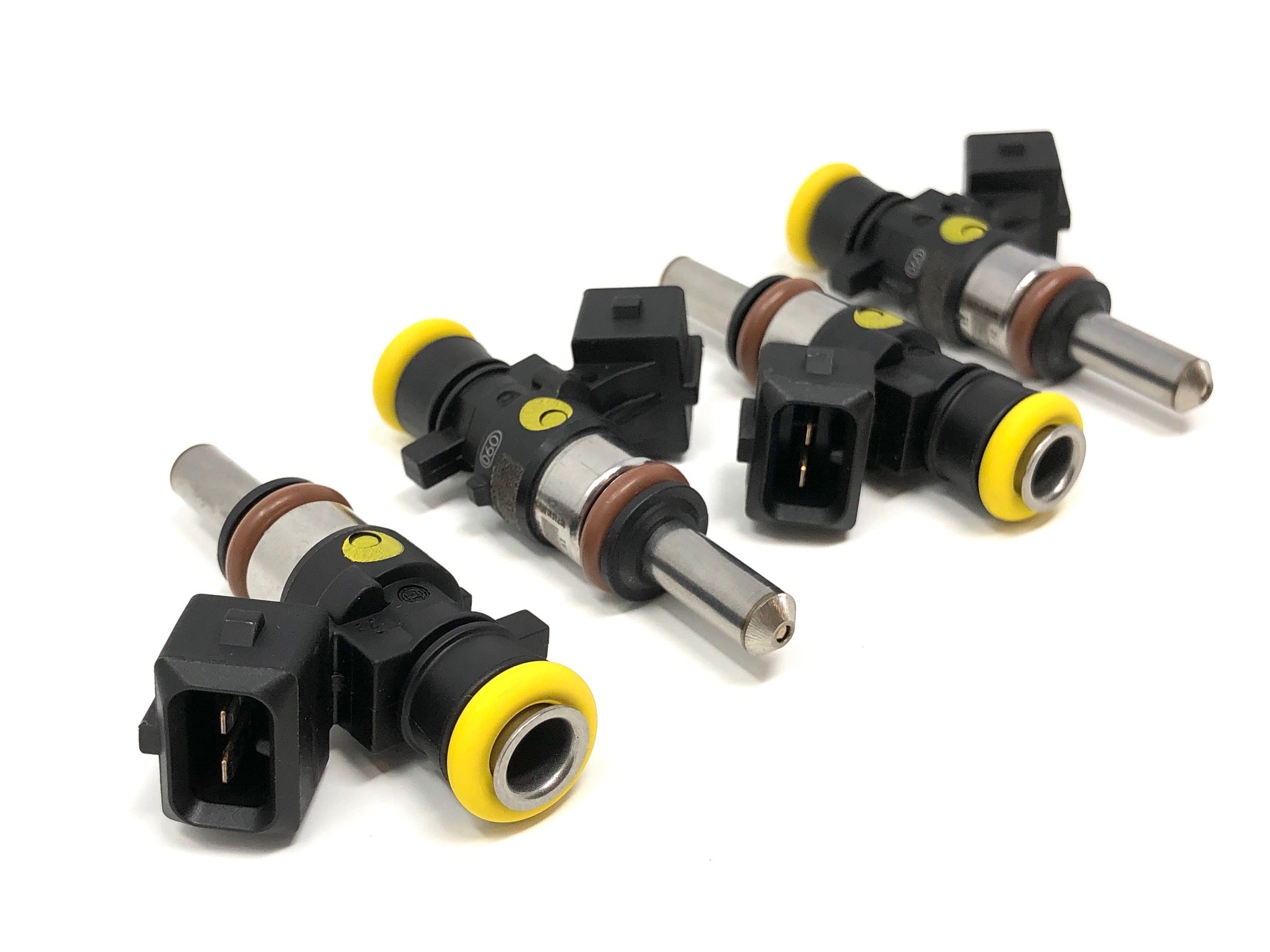

The Precision Raceworks Genuine Bosch Motorsports EV14 extended tip fuel injectors featuring EV1 connector matched and packaged in pack of 4 or 6 units.

Features

- Full stainless wetted internals for corrosion resistance compatible with all known fuels

- Proprietary spray pattern perfect for use in EA888.3 & center fire BMW manifolds

- Strong magnetic valve design capable of stable operation up to 10 bar

- Advertised flow rates

• 925cc* Version
  • Minimum Flow 800cc @ 3bar (43.5 PSI)
  • Minimum Flow 925cc @ 4bar (58 PSI)
  • Minimum Flow 1050cc @ 5 bar (72.5 PSI)

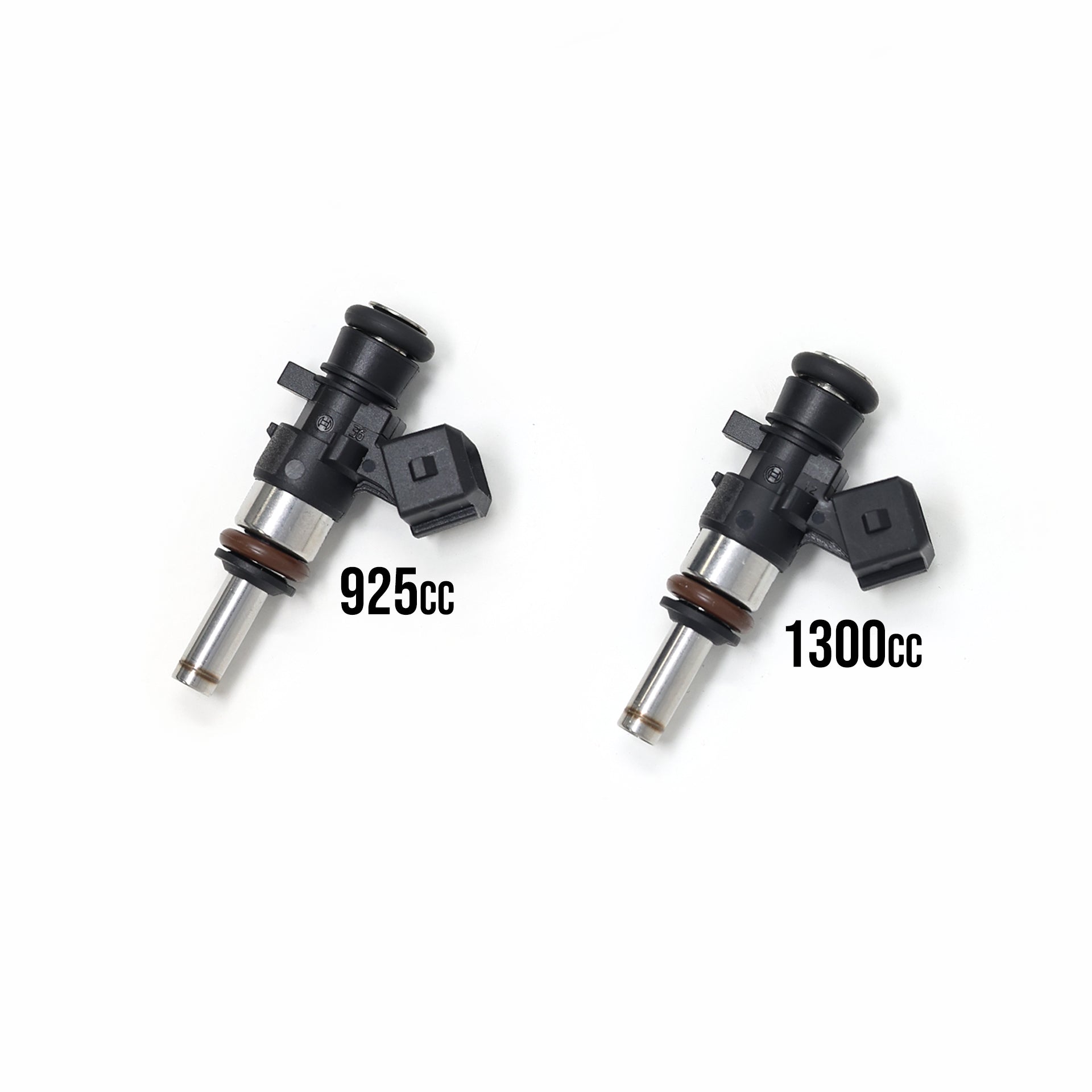

• 1300cc* Version
  • Minimum Flow 1125cc @ 3bar (43.5 PSI)
  • Minimum Flow 1300cc @ 4bar (58 PSI)
  • Minimum Flow 1450cc @ 5 bar (72.5 PSI)


- Matched both Static and Dynamic within 2%

- Certificate of Conformance provided with each set proving actual flow data

- Individually serialized injectors that match flow data from Certificate of Conformance

For more product details see the specifications tab

*Actual flow rate may vary, as the advertised rate is based upon an overall average.





Injector Dead Times

1300cc / 925cc - Injector Dead Times 8v 10v 12v 14v 16v 2bar 2.071 1.487 1.138 0.0649 0.0806 3bar 2.906 1.801 1.362 0.914 0.814 4bar X 2.017 1.481 1.143 1.036 5bar X 2.222 1.874 1.164 1.114
