By Black Market Parts

Bosch Flow Matched Injectors US CAR Connector

$399.99 - $999.99
Shipping calculated at checkout.
Availability: Ships Direct From Vendor
Part Number: 501-0028
Regular price $399.99
Regular price $399.99 Sale price $399.99
Regular price $399.99
Regular price $399.99 Sale price $399.99

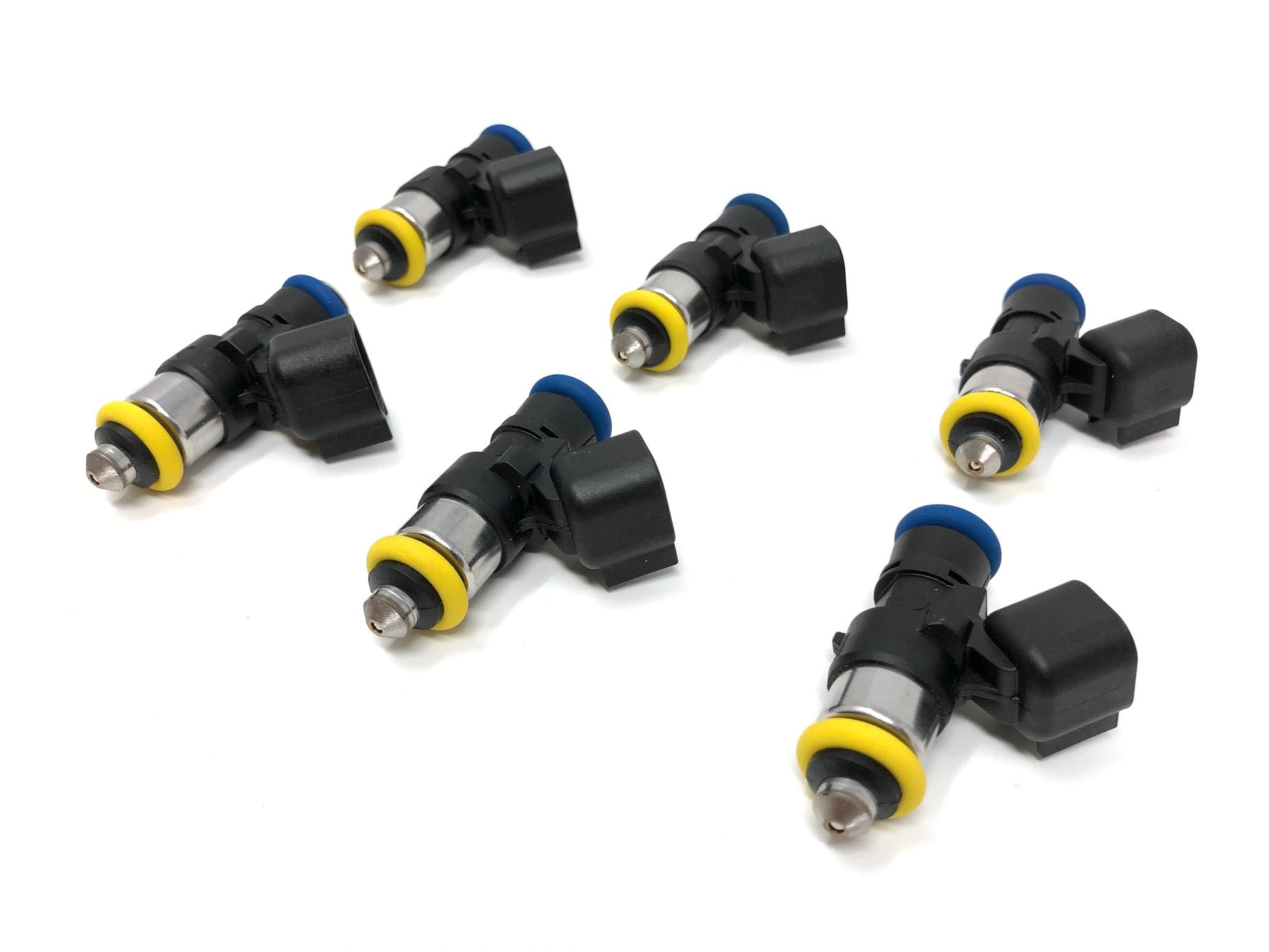

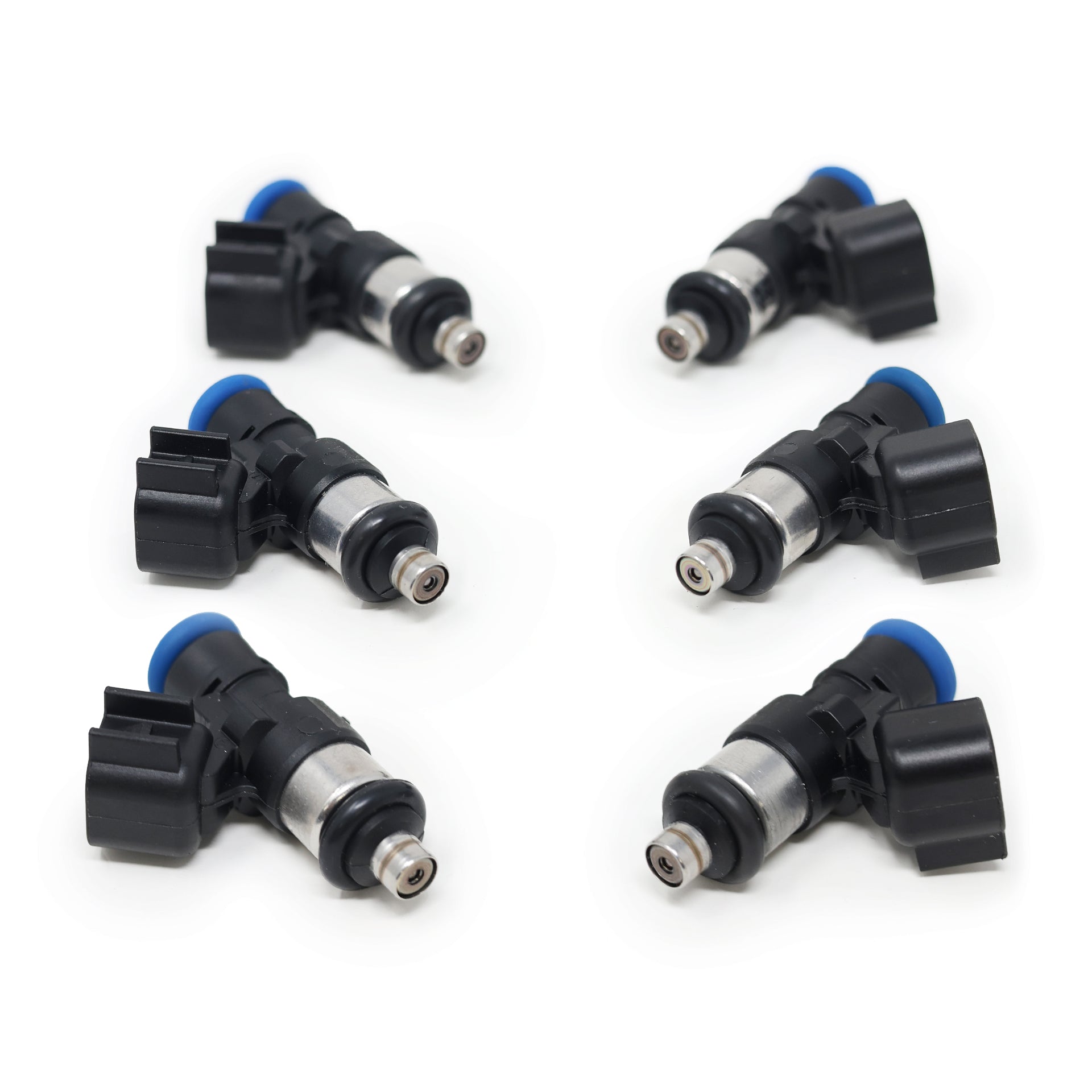

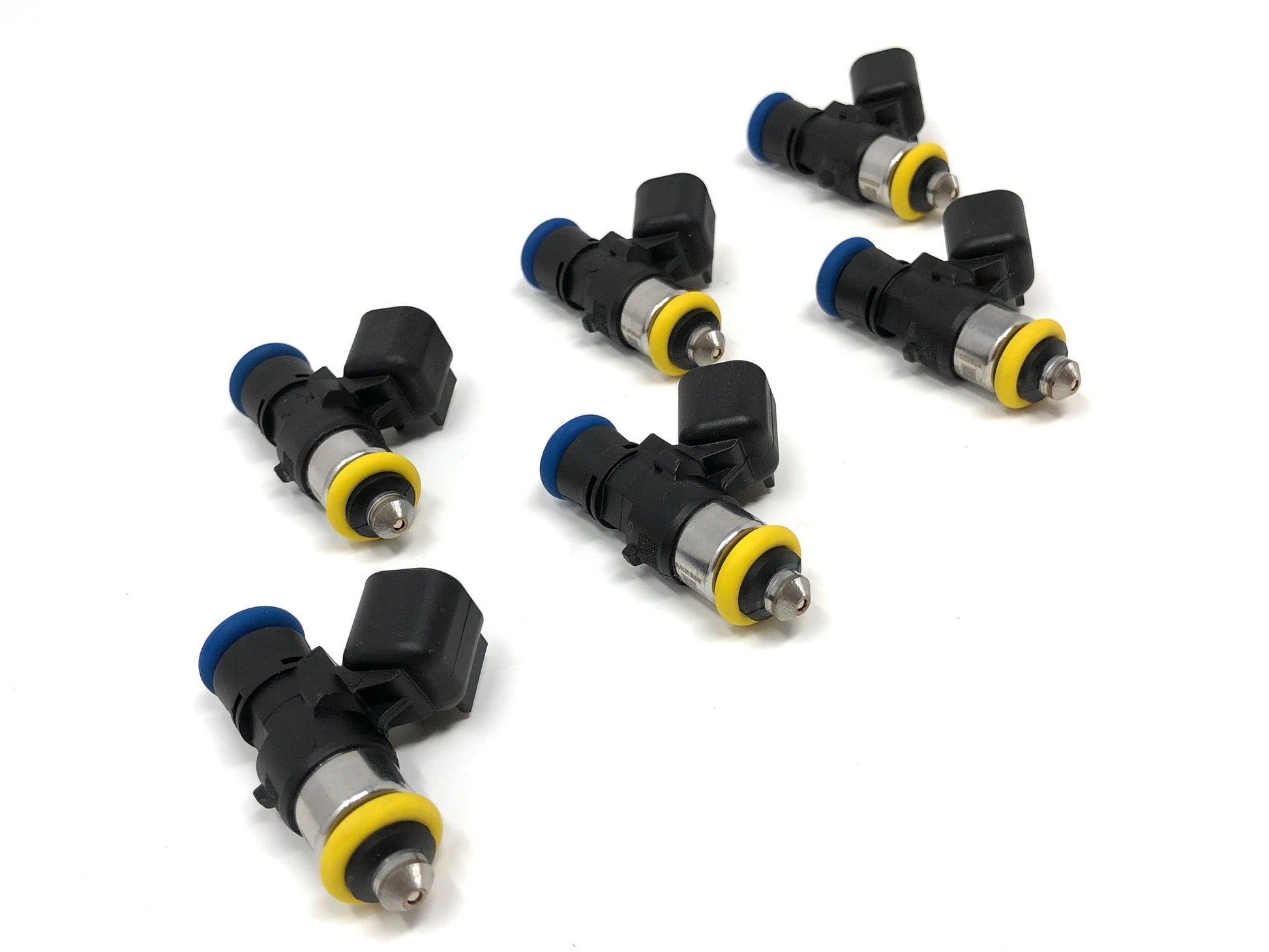

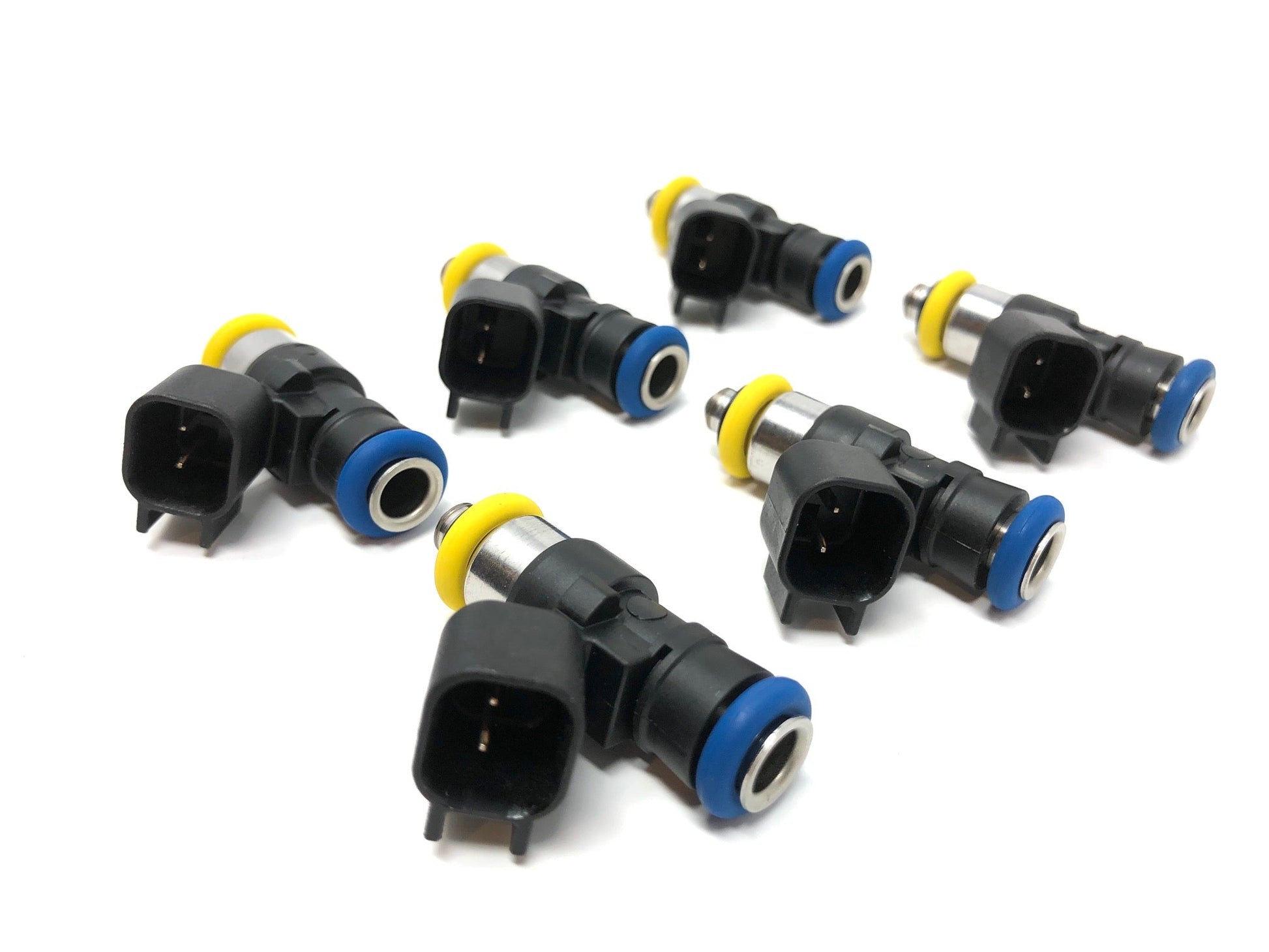

The Black Market Parts Genuine Bosch Motorsports EV14 fuel injectors featuring USCAR (EV6) connector matched and packaged in pack of 6 units.

Direct plug in for Motiv Reflex, AIC, and Nexsys Motorsports

Features

- Full stainless wetted internals for corrosion resistance compatible with all known fuels

- Compact short body design allows for fitment in 200+ applications

- Strong magnetic valve design capable of stable operation up to 10 bar

- Minimum flow of 750cc @ 3bar (43.5 PSI industry standard)

  •  900cc @ 4bar (58.2 PSI)
  • 1050cc @ 5bar (72.5 PSI)

- Matched both Static and Dynamic within 2%

- Certificate of Conformance provided with each set proving actual flow data

- Individually serialized injectors that match flow data from Certificate of Conformance

For more product details see the specifications tab


*Actual flow rate may vary, as the advertised rate is based upon an overall average.



Dead Times

750cc Injectors


  8v 10v 12v 14v 16v
2bar 2.000 1.422 0.903 0.800 0.558
3bar 2.452 1.707 1.393 0.983 0.750
4bar X 1.398 1.347 1.058 0.788
5bar X 2.028 1.526 1.081 0.853
