G8x / Supra A9x Billet Fuel Pump Top Hat

SKU 601-0316
Original price $299.99 - Original price $299.99
Original price
$299.99
$299.99 - $299.99
Current price $299.99

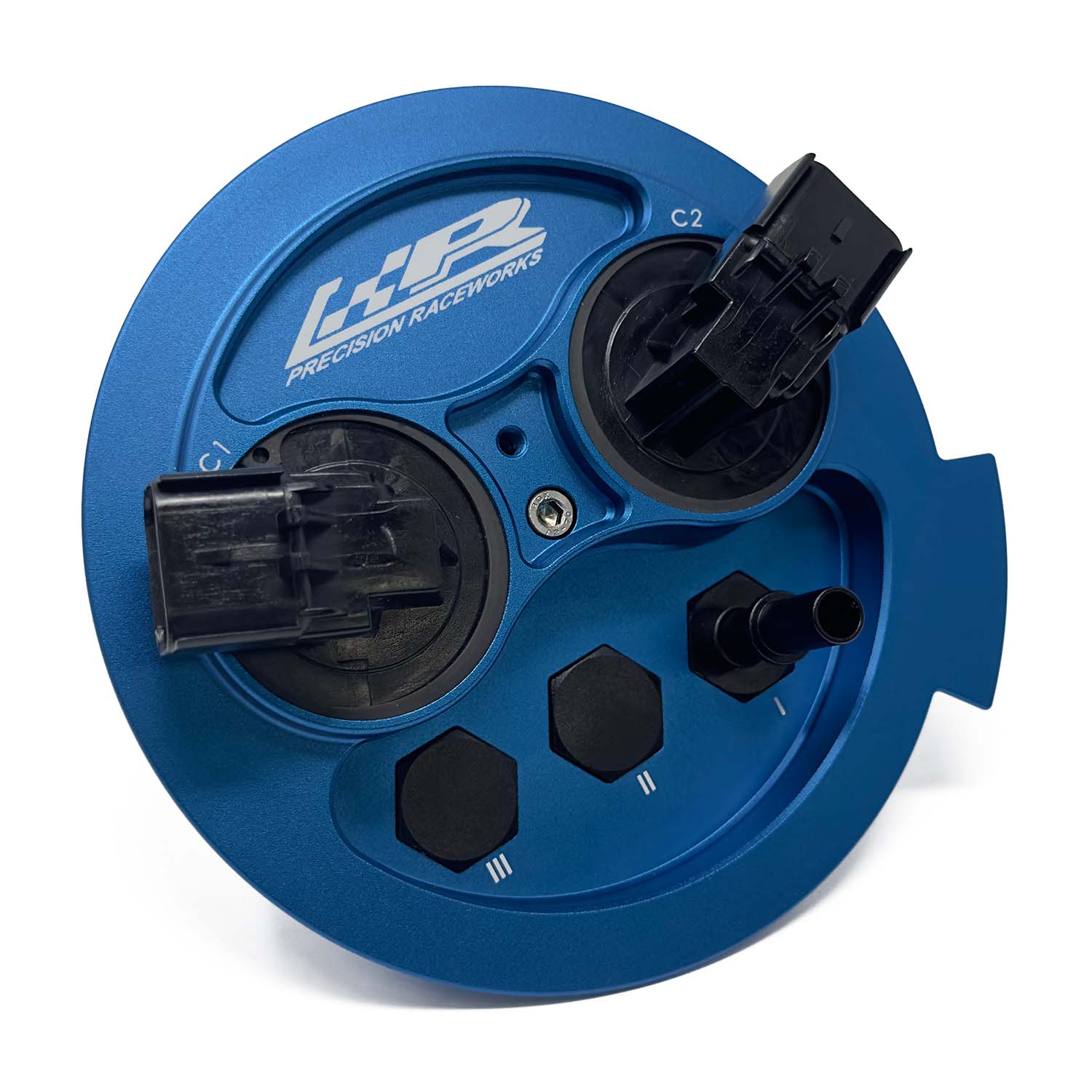

The Precision Raceworks BMW G-Series and A9x Toyota Supra Billet Tophat is a great way to get the most out of any fuel system! With up to 3 dedicated high flow modular ports and up to 12 wires, there are countless ways you can configure your pump setup to meet your needs!



Features & Benefits

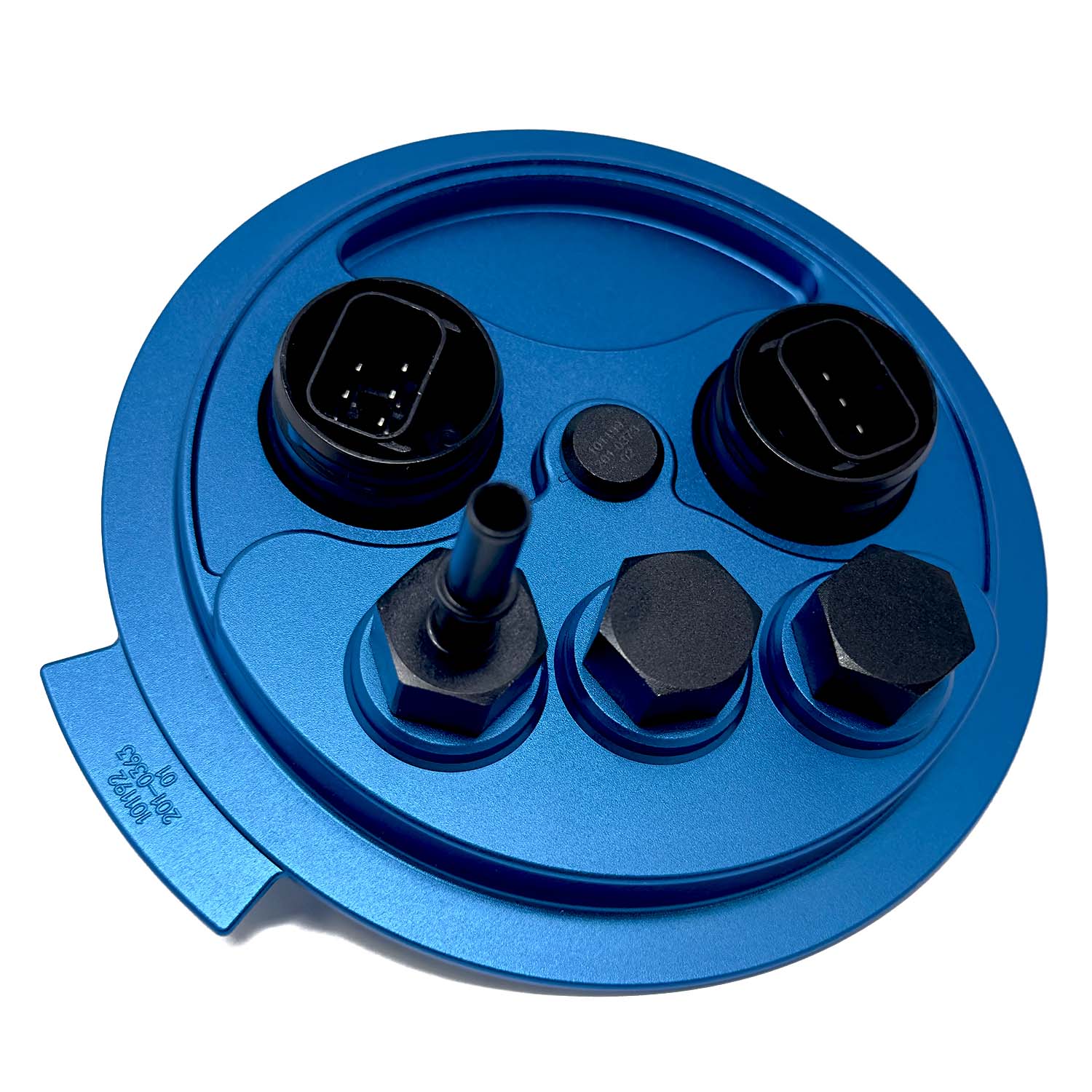

  • Billet Aluminum top hat with 3 high flow fuel ports (optional - 1 included)
  • Ability to run dedicated fuel pump(s) for port injection system
  • Compatible with adjustable 1:1 scaling fuel pressure regulator
  • Fully sealed quick connect style high current electrical connectors
  • All billet fuel fittings when using AN8 or Quick Connect Options
  • Increased injector flow (when using 1:1 regulator feature vs static)
  • Compatible with all stock or upgraded primary fuel pumps*
  • Modular design allows for AN8 or quick connect connection styles
  • All components compatible with Gasoline, Methanol, & Ethanol
  • Compatible with sensor on tophat (Not all vehicles have this sensor)

 *Note when connecting to some performance fuel pumps, additional PTFE lines and fittings may be required.  Contact us if you need assistance purchasing these items.

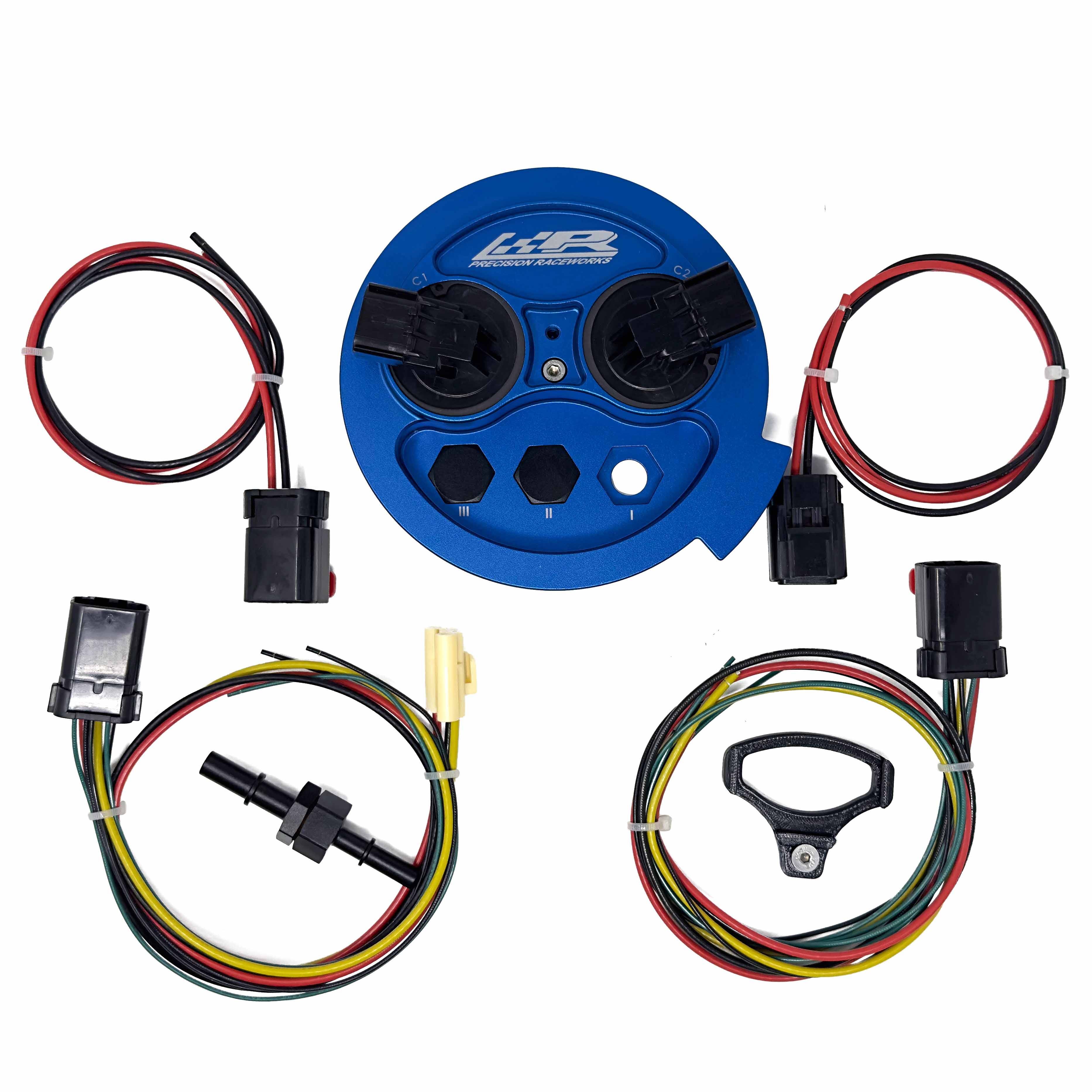

    Main Items Included

    • Billet Tophat
    • Two Electrical bulkheads with connectors (6 wires ea)

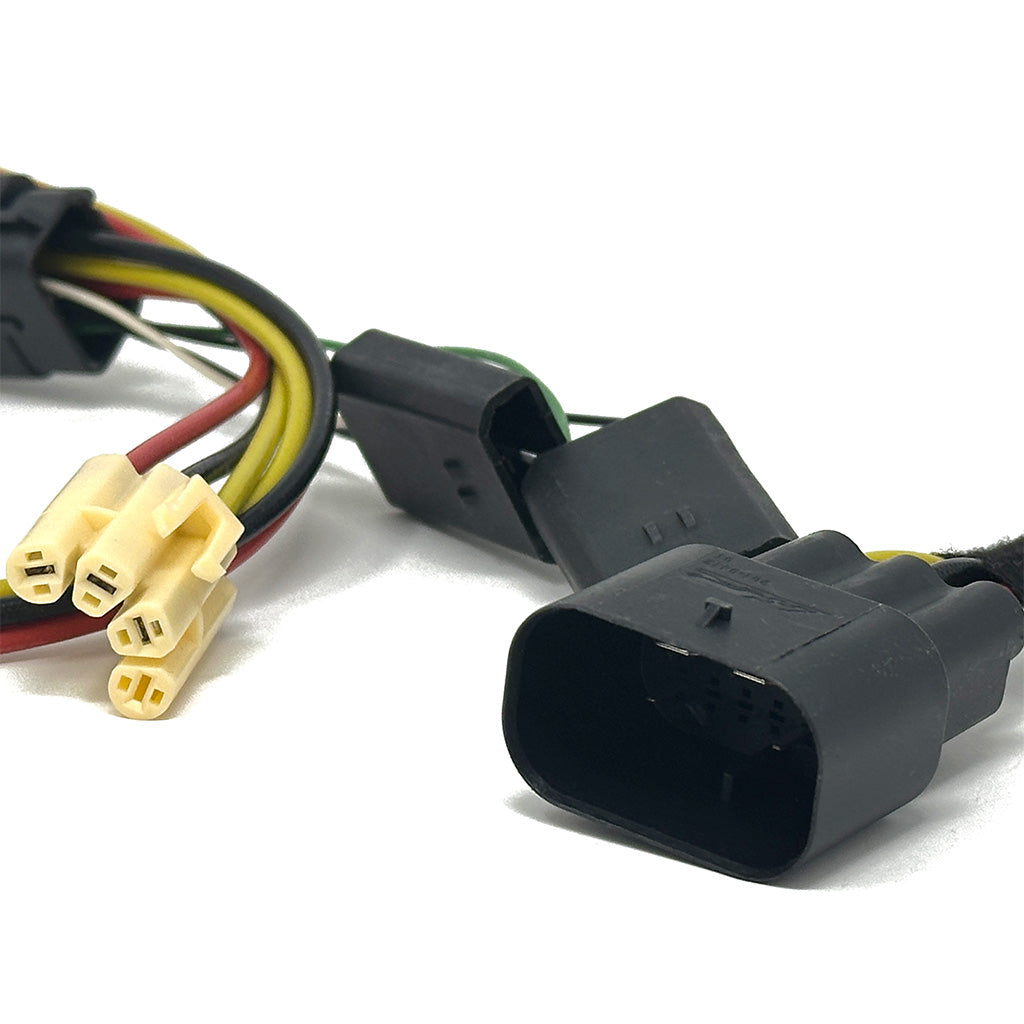

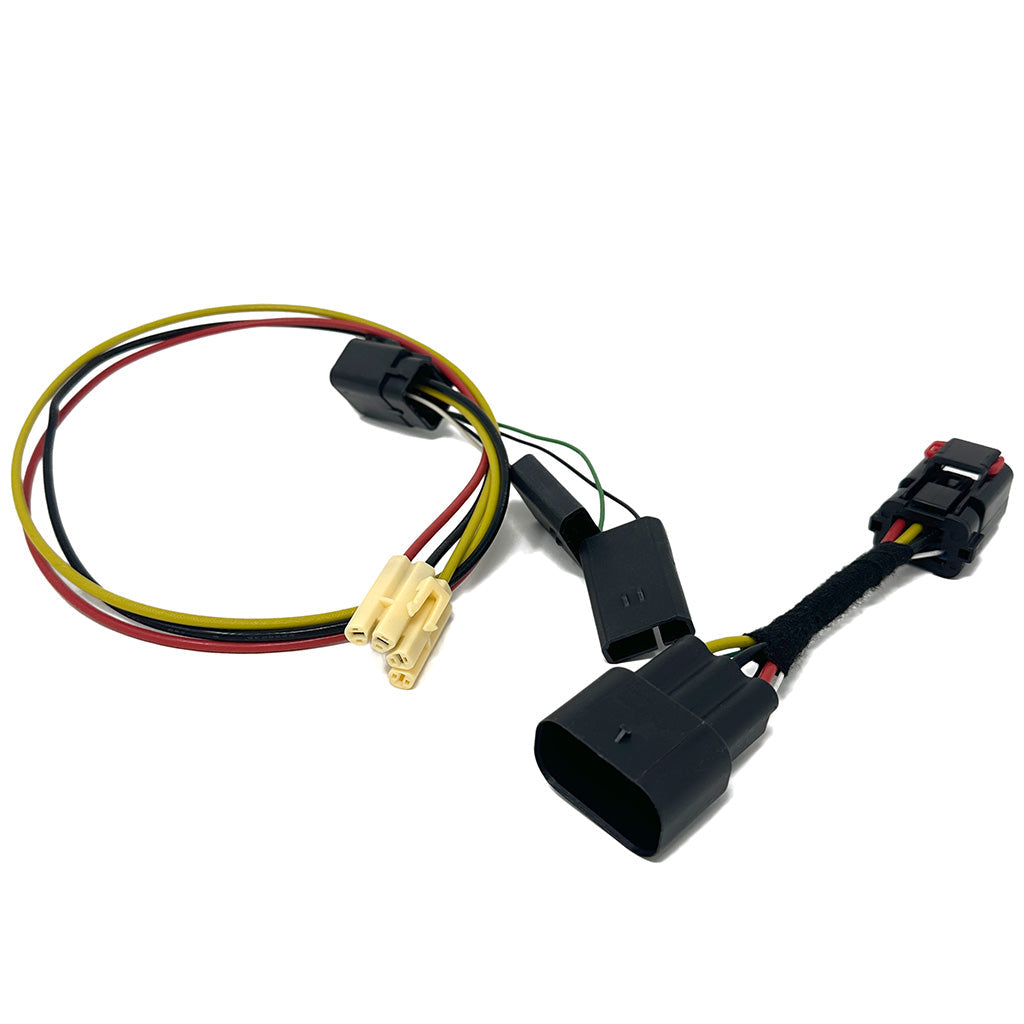

    • Two electrical connectors pre-wired to run factory pump and floats
    • Two electrical connectors pre-wired for single 2-wire pump (additional wires and terminals sold separately)
    • One 3/8" male quick connect output (compatible with factory line)
    • One 7.89mm male quick connect for in the tank
    • One PTFE line for in tank with 7.89 quick connect (for factory filter)
    • Two accessory port block off plates
    • One sensor mounting bracket (not needed on all cars)



    Optional Accessories

    • Proprietary full flow low profile AN8 Bulkhead set
    • Loose electrical terminals compatible with our connectors
    • Pre-crimped pigtail electrical wires compatible with all fuels
    • 90 degree billet quick connects for AN6 Fuel line
    • Smooth bore PTFE Fuel line by the inch
    • All fuel compatible electrical wire by the inch



    Specifications

    Product Weight: 2.0 lbs

    Material: Anodized Aluminum

    OEM Pump Wiring: Included - Requires posi-taps or T-Taps

    Secondary Pump Wiring:  Included for 1 additional pump

    Included Pump Output: 9.49mm (3/8") male quick connect (fits oem fuel line)
