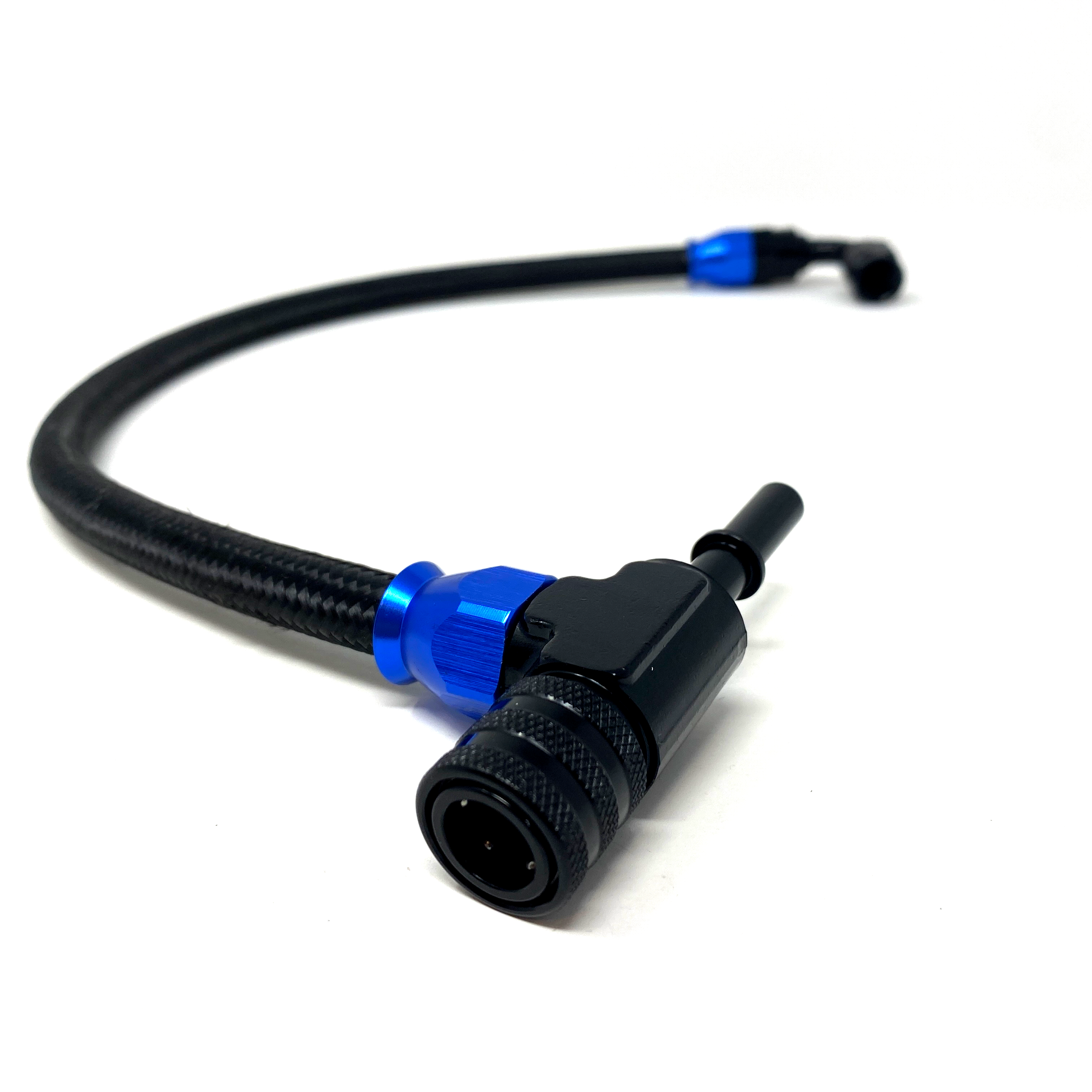

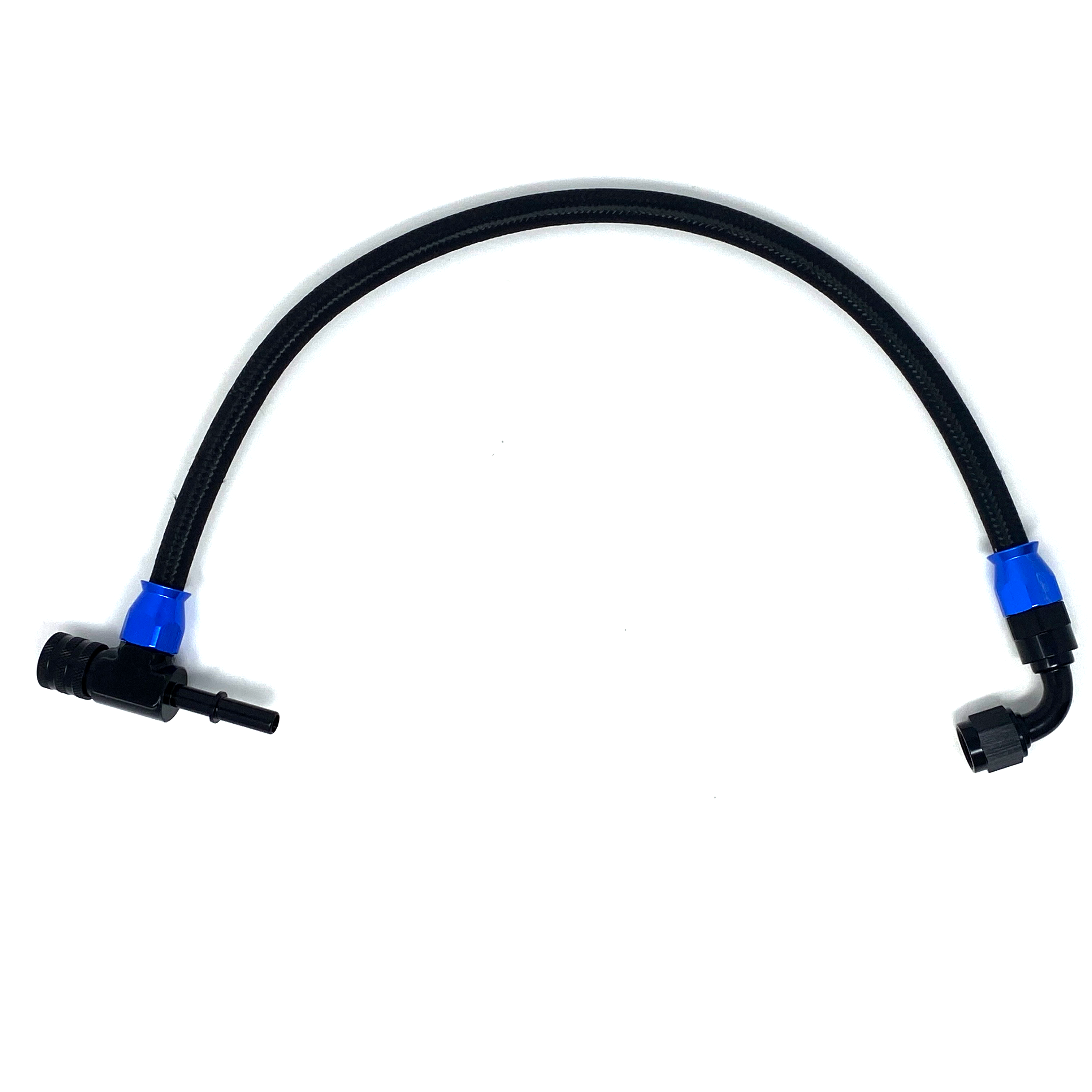

N54 / N55 Port Injection Fuel Line (Top Mount Fuel Rail)
The Precision Raceworks N54/N55 TOP MOUNT PORT INJECTION LINE is compatible with most aftermarket manifolds with top mount port injection.Â These manifolds include but are not limited to the Black Market Parts manifold(s), BKC Manifold, BMS manifold, Sharp Custom, Doc Race and many more...
All connections are designed in house and machined from 6061 aluminum then anodized for 100% E85 compliance. All female quick connectors have 2 seals (a primary and secondary seal) to guarantee no possible fuel leaks. The fuel line used by Precision Raceworks is Aeroquip AN6 Socketless hose used in high end E85 applications built all over the world.
This high quality solution is direct plug and play with all factory and aftermarket fuel lines providing you a quick and easy way to supply fuel to the port injection of your aftermarket intake manifold.
For more details see the specifications tab
Weight: .35 lbs
Fuel hose type: PTFE Smooth Bore
AN Size: -6AN
Connection style: OEM Quick Connect (HPFP & FUEL LINE)
Connection style fuel rail:Â AN6 Flare Female
