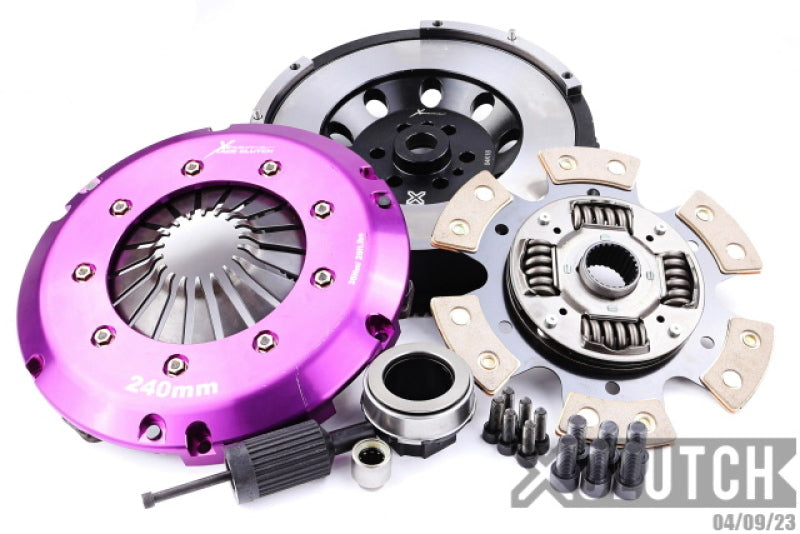

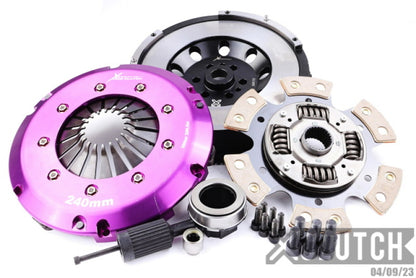

XClutch 2011 BMW 1 Series M Base 3.0L Stage 2R Extra HD Sprung Ceramic Clutch(6 Bolt/PB in Flywheel)

XClutch performance upgrades have been engineered to provide the ultimate in clutch performance. Utilising the latest pressure plate design and friction material composition, XClutch upgrades offer the ideal balance between driveability and performance for different vehicle applications. The pivot point and diaphragm design are carefully analysed to ensure positive pedal feel and increased clamping force.

With one of the world's most advanced clutch testing and R&D facilities, in-house vehicle testing and over 30 years of clutch experience, XClutch performance upgrades offer the highest levels of engineering and product development for your street vehicle, 4x4 or dedicated race car.

XClutch utilizes the latest ceramic technology in their Stage 2R performance kits. Mated with a high performance pressure plate, the Stage 2R clutch is recommended for vehicles requiring a higher level of torque holding and heat capacity.The Stage 2R ceramic kit is a single disc, race-only clutch. Available for a wide variety of vehicles, the Stage 2R clutch provides a higher torque and heat capacity over the Stage 2 equivalents.

Features and Benefits

• Recommended for Track Use
• Single Disc, Sprung Ceramic
• Extra Heavy Duty - Diaphragm Style
• Friction Disc, Pressure Plate, Release Bearing, Flywheel - Pilot, Aligning Tool and Technical Service Bulletins (as required)

Technical Bulletin
Technical Bulletin
Technical Bulletin

Alignment Tool Included: Yes
Clamping Force % Increase: N/A
Clutch Disc Diameter: 9 7/16
Disc Material: Ceramic
Disc Type Sprung Solid: Sprung
Dual Mass to Single Mass Flywheel Conversion: Yes
Flywheel Bolts Included: Yes
Flywheel Included: Single Mass
Flywheel Step: -0.375
Friction Surface Configuration: Recessed
Input Shaft Diameter: 1 3/8
Input Spline Quantity: 26
Maximum Torque: 670
Pilot Bearing Included: Yes
Pressure Plate Bolts Included: Yes
Recommended Use: Track Use
Release Bearing Included: Yes
Spline Grease Included: Yes

This Part Fits:
